3 Piece Stainless Steel Ball Valves
3 piece stainless steel ball valves (also referred to as 3 pc ball valves) are designed for industrial applications requiring inline maintenance, easy cleaning, and reliable shut-off performance. These valves feature a three-piece body construction that allows the center section to be removed while the end connections remain installed in the pipeline. Available in threaded, socket weld, and sanitary configurations, most 3 piece ball valves are full port and commonly rated to 1000 WOG. Manufactured from corrosion-resistant 304 and 316 stainless steel, they are widely used in chemical processing, food and beverage production, water treatment, and general industrial fluid handling and process applications.
View All Stainless Steel Ball Valves, including 1-piece, 2-piece, 3-piece, and 3-way ball valve configurations.
3 Piece Full Port Ball Valves – 316 Stainless SteelStarting at $19.73
3 Piece Stainless Steel Ball Valves
3 piece stainless steel ball valves (also referred to as 3 pc ball valves) are designed for applications requiring inline maintenance, easy cleaning, and reliable shut-off performance. These valves feature a three-piece body construction that allows the center section to be removed while the end connections remain installed in the pipeline, making them ideal for systems requiring regular servicing.
Available in threaded, socket weld, and sanitary configurations, these 3 piece ball valves are typically full port and commonly rated to 1000 WOG. Manufactured from corrosion-resistant 304 and 316 stainless steel, they are widely used in chemical processing, food and beverage production, water treatment, and industrial fluid handling systems.
Shop 3 Piece Ball Valves by Connection Type
Select the right 3 piece ball valve configuration based on your piping system and application requirements:
- Threaded 3 piece ball valves – Ideal for general industrial applications and easy installation
- Socket weld 3 piece ball valves – Designed for high-pressure, permanent pipe connections
- Sanitary 3 piece ball valves – Built for hygienic environments such as food, beverage, and pharmaceutical processing

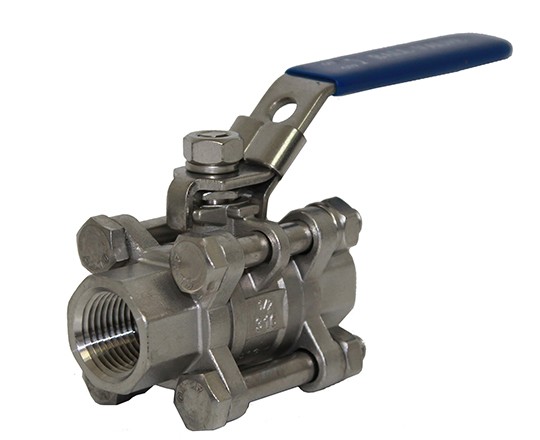

What is a 3 Piece Ball Valve?
A 3 piece ball valve, also known as a three-piece or 3 pc ball valve, is a type of shutoff valve constructed with three separate body sections bolted together. It consists of two end connections that contain the ports and a central body that houses the ball, seats, and internal components. This three-piece design allows the center section to be removed for cleaning or repair while the end connections remain installed in the pipeline.
This construction makes 3 piece ball valves ideal for applications requiring frequent maintenance, as internal components can be accessed without removing the entire valve from the system. This design is commonly used in industrial 3 piece ball valves where serviceability is a priority.
What Are 3 Piece Ball Valves Used For?
3 piece stainless steel ball valves are used in applications that require regular cleaning, inspection, or maintenance without removing the valve from the pipeline. Their serviceable design makes them ideal for industries where minimizing downtime is critical. 3 piece stainless steel ball valves are commonly selected for industrial systems that require reliable shut-off and frequent servicing.
- Chemical processing systems
- Food and beverage production
- Pharmaceutical manufacturing
- Water and wastewater treatment
- General industrial fluid handling
Key Features of 3 Piece Ball Valves
- Full port ball valve design for maximum flow and minimal pressure drop
- Typically rated to 1000 WOG for industrial and commercial applications
- Available in 304 and 316 stainless steel for enhanced corrosion resistance
- Three-piece body construction allows inline maintenance and easy servicing

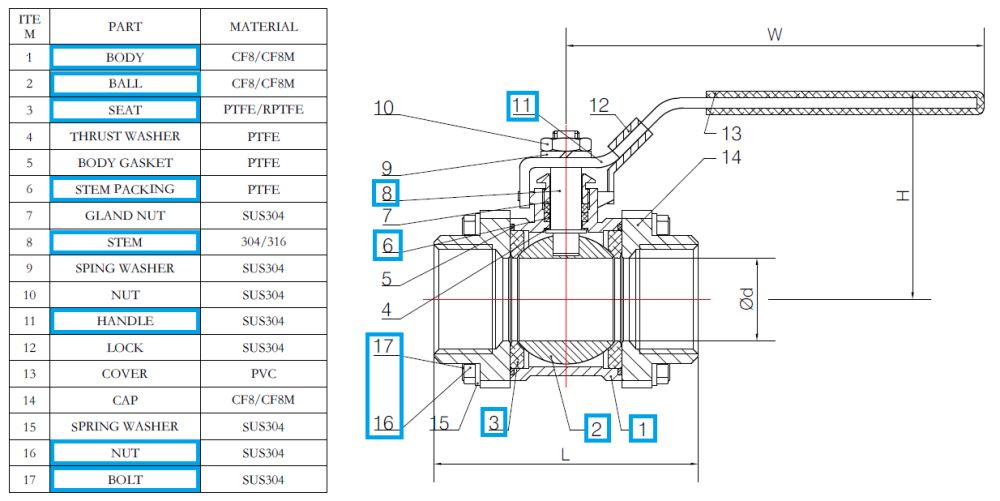

Parts of a 3 Piece Ball Valve
Understanding the parts of a 3 piece ball valve is important for maintenance, repair, and proper valve selection. A 3 piece ball valve consists of several key components that work together to control flow and ensure reliable sealing:
- Central Body: The middle section that houses the internal parts.
- End Connections: The two outer sections that connect to the application and allow fluid to enter and exit.
- Seats: Contoured rings that form a tight seal around the ball and hold it in place.
- Ball: A rotating ball with a hollow channel that opens and closes the flow.
- Stem: Connects the ball to the operating handle.
- Packing: Holds the stem in place and prevents leaks.
- Handle: Used to manually turn the ball with a 90-degree quarter turn.
- Bolts: Four bolts and nuts hold the three body pieces together by passing through the end connections and the central body.
3 Piece vs 2 Piece Ball Valves
The main difference between a 3 piece ball valve and a 2 piece ball valve is serviceability. A 3 piece ball valve allows the center section to be removed for maintenance while the valve remains installed in the pipeline, whereas a 2 piece valve typically needs to be removed from the system for servicing.
3-piece valves are larger and more expensive but offer significantly easier maintenance. 2-piece valves are more compact and cost-effective, making them suitable for general-purpose applications where frequent servicing is not required.
Feature | 3-Piece Ball Valve | 2-Piece Ball Valve |
Body Design | Three separate sections (two end connections + center body) | Two body pieces joined together |
Maintenance | Easy to service; center section can be removed without disturbing pipe connections | Requires removing the valve from the line for most service work |
Cleaning | Ideal for frequent cleaning or inspection | Not designed for regular disassembly |
Cost | Higher cost due to more complex construction | More affordable |
Downtime | Minimal downtime, since line connections stay in place | More downtime because full removal is often needed |
Typical Use | Food and beverage production, chemical, pharmaceutical, or systems needing regular upkeep | Standard industrial, plumbing, and general-purpose flow control |
Best For | Applications requiring frequent maintenance | General applications where easy maintenance isn't the highest priority |
Frequently Asked Questions About 3 Piece Ball Valves
What is a 3 pc ball valve?
A 3 pc ball valve is another term for a 3 piece ball valve. The abbreviation “3 pc” is commonly used in specifications and industrial product listings.
What is the difference between a 3-piece and a 2-piece ball valve?
A 3-piece ball valve features a removable center body that allows the valve internals to be serviced while the end connections remain attached to the pipeline. A 2-piece ball valve typically needs to be removed from the line for maintenance.
Why choose a 3-piece ball valve?
3-piece ball valves are chosen for applications that require regular cleaning, inspection, or seal replacement. Their design reduces downtime by allowing inline servicing without disconnecting piping.
Are 3-piece ball valves full port?
Many 3-piece ball valves are designed with a full port configuration to allow unrestricted flow. Port design may vary by model, so specifications should be confirmed for each valve.
What industries use 3-piece stainless steel ball valves?
3-piece stainless steel ball valves are commonly used in food and beverage processing, chemical handling, pharmaceutical manufacturing, water treatment, and other industrial process applications that require frequent maintenance.
What end connection types are available for 3-piece ball valves?
3-piece ball valves are available with threaded, socket-weld, flanged, and sanitary end connections, depending on the application and valve configuration.
Can 3-piece ball valves be serviced while they are installed in the pipeline?
Yes. The primary advantage of a 3-piece ball valve is that the center body can be removed for service while the end connections remain installed in the pipeline.
Simple Spec Summary of 3 Pc Valves
Most 3 piece stainless steel ball valves are manufactured from 304 or 316 stainless steel and use PTFE seats for reliable sealing performance. Full-port designs maintain the internal pipe diameter, minimizing pressure drop and maximizing flow efficiency.
| Feature | 3 Piece Ball Valves |
|---|---|
| Body Design | Three-piece, split body |
| Serviceability | Inline maintenance |
| Port Design | Full port (most models) |
| Materials | Stainless steel |
| End Connections | Threaded, socket weld, sanitary |
| Typical Rating | 1000 WOG |
When to Use a 3 Piece Ball Valve
3 piece stainless steel ball valves are best suited for applications requiring routine maintenance, inspection, or cleaning without removing the valve from the pipeline. They are commonly selected when minimizing downtime is critical or when internal components such as seats and seals require periodic replacement.
For applications where servicing is not required, 2 piece ball valves provide a more compact and cost-effective alternative, while 3 way ball valves are used for flow diversion or mixing.
Explore our full range of 3 piece stainless steel ball valves by connection type:
