C800-SS

In stock
SKU
C800-SS
More Information
Size8"
Part NumberC800-SS
MaterialStainless Steel 316
HandlesStainless Steel 304
GasketBuna N
Thread8" Hose Barb
Working Pressure150 PSI
$569.89
  • 8" Female Coupler x 8" Hose Barb
  •

     CLICK HERE for All Sizes



     CLICK HERE for All Type C Sizes



    • Product Description:

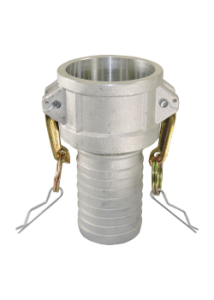

    • 8 inch Type C Stainless Steel Female Cam and Groove Coupler x Hose Shank. (Snaplock Brand)
    • How to use:
    • ● To quickly connect, slide the 8" Type C Coupling over a 8" Male Adapter and then close all 4 cam handles.
    • ● To quickly disconnect, lift up the cam lever arms and uncouple the two threaded pipe fittings.
    • To Install:
    • Insert the Hose Shank into a 8" Hose End and then fasten it in place with hose clamps or a crimp collar.
    • Will Connect with:
    • ● The female coupler end will couple with a 8" Male Adapter(PTK Style)
    • ● The Hose Barb will connect into a 8" OD Hose. (Outer Diameter)
    • Used to:
    • Install a 8" Female Cam & Groove into a 8" Hose.
    • Connect with a 8" Male Coupling.
    • Style:
    • PTK Style - Compatible with PT Coupling and Kuriyama
    • Material:
    • Constructed out of Stainless Steel 316.
    • For other materials scroll down to "Related Products".



    • 8" Camlocks Compatibility
    • There are two styles in the 8" size that are not compatible with each other:
    • ● PTK Type - PT Coupling and Kuriyama.
    • ● NECO Type - Neco, Ever-Tite and Dixon (Andrews).
    •
    • PTK and NECO differences:
    • ● PTK Type - The OD of the Male Adapter is less than 9" Outer Diameter (OD)
    • ● NECO Type - The OD of the Male Adapter is a little over 9" Outer diameter (OD)

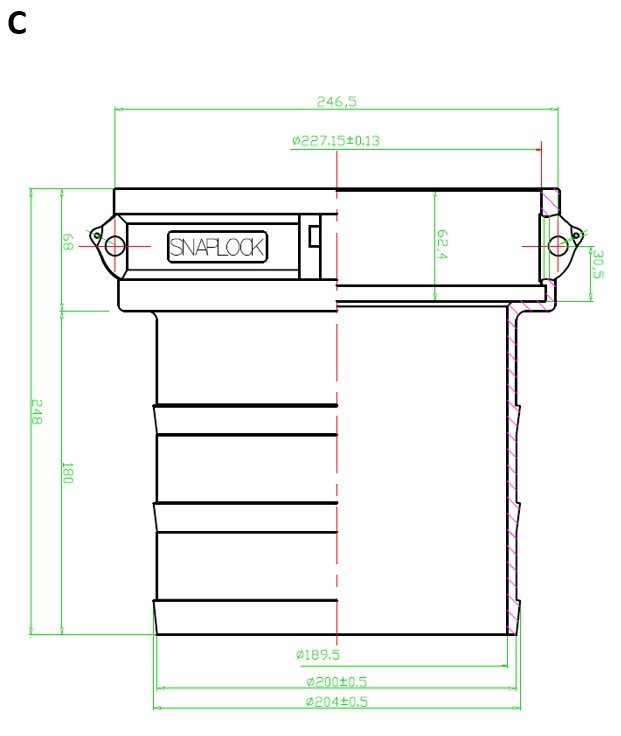

    Dimensions:





    Specifications:

    More Information
    Size8"
    Part NumberC800-SS
    MaterialStainless Steel 316
    HandlesStainless Steel 304
    GasketBuna N
    Thread8" Hose Barb
    Working Pressure150 PSI
