B800-SS

 CLICK HERE for All Type B Sizes

• Product Description:

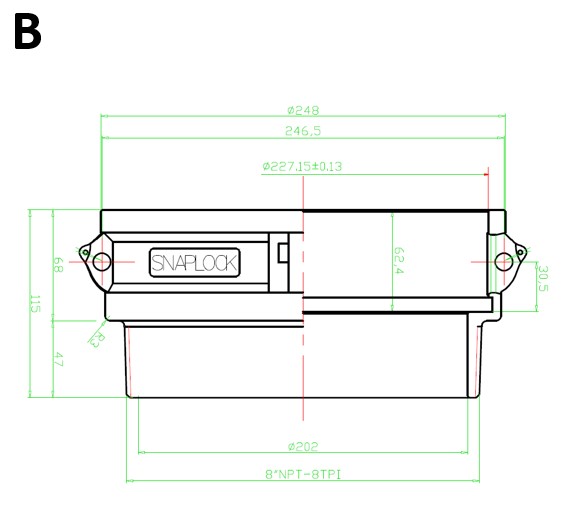

• ● 8 inch Type B Stainless Steel Female Cam and Groove Coupler x Male NPT Thread. (Snaplock Brand)
• How to use:
• ● To quickly connect, slide the 8" Type B over a 8" Male Adapter and then close all 4 cam handles.
• ● To quickly disconnect, lift up the cam lever arms and uncouple the two threaded pipe fittings.
• To Install:
• ● Thread the Male NPT end into a 8" Female NPT Thread.
• Will Connect with:
• ● The female coupler end will couple with a 8" Male Adapter. (PTK Style)
• ● The thread will connect onto a 8" Female NPT Thread. (National Pipe Thread)
• Used to:
• ● Install a 8" Female Cam & Groove into a 8" Female NPT Thread.
• ● Connect with a 8" Male Coupling.
• Style:
• ● PTK Style - Compatible with PT Coupling and Kuriyama
• Material:
• ● Constructed out of Stainless Steel 316.
• ● For other materials scroll down to "Related Products".

• 8" Camlocks Compatibility
• There are two styles in the 8" size that are not compatible with each other:
• ● PTK Type - PT Coupling and Kuriyama.
• ● NECO Type - Neco, Ever-Tite and Dixon (Andrews).
•
• PTK and NECO differences:
• ● PTK Type - The OD of the Male Adapter is less than 9" Outer Diameter (OD)
• ● NECO Type - The OD of the Male Adapter is a little over 9" Outer diameter (OD)
