C800-AL

 CLICK HERE for All Type C Sizes

• Product Description:

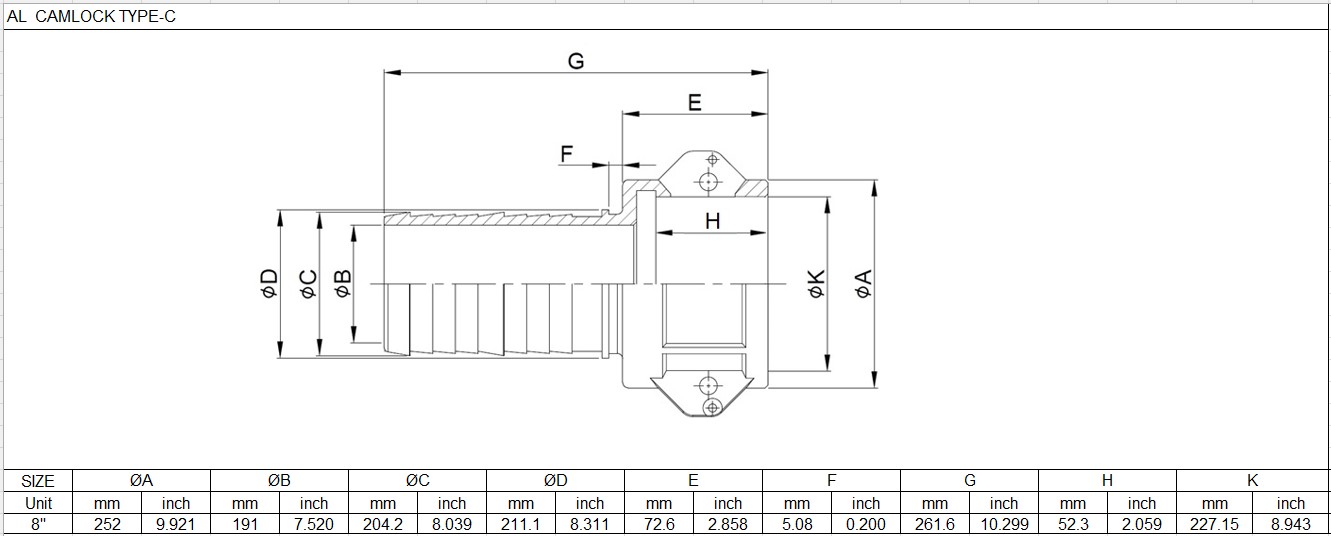

• ● 8 inch Type C Aluminum Female Cam and Groove Coupler x Hose Shank.
• How to use:
• ● To connect, Insert the 8" Type C into a 8" Male Adapter and then close all 4 cam lever arms.
• ● To disconnect, lift up the cam handles and uncouple the two fittings.
• To Install:
• ● Insert the Hose Barb into a 8" Hose and fasten it in place with a crimp collar or hose clamps.
• Will Connect with:
• ● The coupler portion will couple with a 8" Male Adapter. (PTK Style)
• ● The Hose Shank will connect to a 8" Hose. (Outer Diameter)
• Used to:
• ● Connect a 8" Female Cam & Groove into a 8" Hose End.
• ● Connect with a 8" Male Coupling.
• Style:
• ● PTK Style - Compatible with PT Coupling and Kuriyama
• Material:
• ● Constructed out of Aluminum.
• ● For other materials scroll down to "Related Products".

• 8" Camlocks Compatibility
• There are two styles in the 8" size that are not compatible with each other:
• ● PTK Type - PT Coupling and Kuriyama.
• ● NECO Type - Neco, Ever-Tite and Dixon (Andrews).
•
• PTK and NECO differences:
• ● PTK Type - The OD of the Male Adapter is less than 9" Outer Diameter (OD)
• ● NECO Type - The OD of the Male Adapter is a little over 9" Outer diameter (OD)
