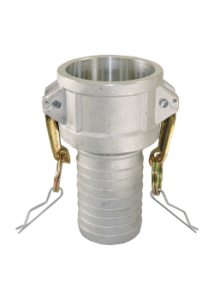

Type C - Aluminum Cam Locks
In stock
SKU
Type-C-coupler-Aluminum
Size | 1/2" to 6" |
---|---|
Material | Aluminum |
Thread | Hose Barb |
Type C couplers are normally used with Type E adapters but can also be used with Type A and F adapters and DP (Dust Plug) of identical size.Polished Hose Barb for easy hose connection.
Type-C Coupler Dimensions
![]() |
Size(mm) | 3/4' | 1' | 1-1/4′ | 1-1/2′ | 2′ | 2-1/2′ | 3′ | 4′ | 5′ | 6′ |
B | 77 | 93 | 101 | 119.5 | 134 | 144.5 | 149.5 | 159 | 169 | 233.5 |
C | 40.1 | 40.1 | 45.8 | 46.1 | 50.2 | 55.2 | 58 | 59.2 | 60 | 62 |
E | 32.4 | 37.3 | 46 | 54 | 63.8 | 76.5 | 92.2 | 120.2 | 146 | 176.5 |
G | 20 | 25.4 | 31.4 | 37.9 | 50.6 | 63.5 | 75.2 | 101 | 126.3 | 151 |
N | 21.5 | 27.6 | 34.3 | 39.8 | 52.3 | 66.9 | 77.3 | 103.3 | 127.6 | 154.2 |
Size | 1/2" to 6" |
---|---|
Material | Aluminum |
Thread | Hose Barb |
