F800-AL

 CLICK HERE for All Type A Sizes

• Product Description:
• ● 8 inch Type F Aluminum Male Cam and Groove Adapter x Male NPT Thread.
• How to use:
• ● To connect, Insert the 8" Type F into a 8" Female Coupler and then close all 4 cam lever arms..
• ● To disconnect, lift up the cam handles and uncouple the two pipe fittings.
• To Install:
• ● Thread the Male NPT portion onto a 8" Female NPT Thread.
• Will Connect with:
• ● The adapter portion will couple with a 8" Female Coupler. (PTK Style)
• ● The thread will connect to a 8" Female NPT Thread. (National Pipe Thread)
• Used to:
• ● Connect a 8" Male Cam & Groove into a 8" Female NPT Thread.
• ● Connect with a 8" Female Coupling.
• Style:
• ● PTK Style - Compatible with PT Coupling and Kuriyama
• Material:
• ● Constructed out of Aluminum.
• ● For other materials scroll down to "Related Products".

• • 8" Camlocks Compatibility
  • There are two styles in the 8" size that are not compatible with each other:
  • ● PTK Type - PT Coupling and Kuriyama.
  • ● NECO Type - Neco, Ever-Tite and Dixon (Andrews).
  •
  • PTK and NECO differences:
  • ● PTK Type - The OD of the Male Adapter is less than 9" Outer Diameter (OD)
  • ● NECO Type - The OD of the Male Adapter is a little over 9" Outer diameter (OD)

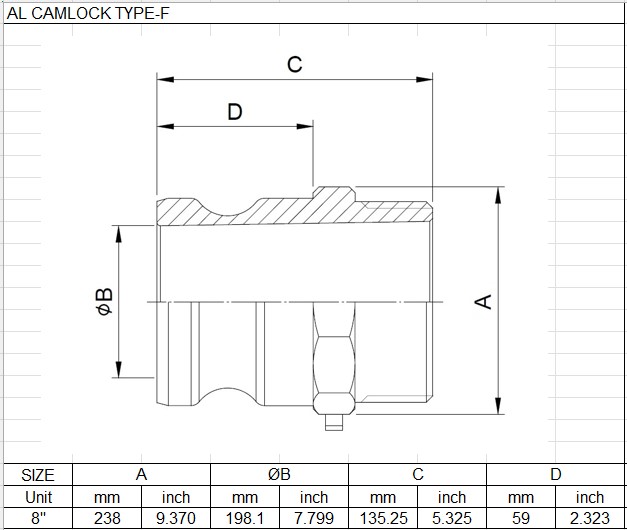

Dimensions:

Specifications:
