E800-AL
In stock
SKU
E800-AL
Size | 8" |
---|---|
Part Number | E800-AL |
Material | Aluminum |
Thread | 8" Hose Barb |
Working Pressure | 50 PSI |
$91.02
CLICK HERE for All Type E Sizes
- Product Description:
- ● 8 inch Type E Aluminum Male Cam and Groove Adapter x Hose Shank.
- How to use:
- ● To connect, Insert the 8" Type E into a 8" Female Coupler and then close all 4 cam lever arms.
- ● To disconnect, lift up the cam handles and uncouple the hose two fittings.
- To Install:
- ● Insert the Hose Barb into a 8" Hose and fasten it with a crimp collar or with hose clamps.
- Will Connect with:
- ● The adapter portion will couple with a 8" Female Coupler. (PTK Style)
- ● The Hose Shank will connect to a 8" Hose. (Outer Diameter)
- Used to:
- ● Connect a 8" Male Cam & Groove into a 8" Hose End.
- ● Connect with a 8" Female Coupling.
- Style:
- ● PTK Style - Compatible with PT Coupling and Kuriyama
- Material:
- ● Constructed out of Aluminum.
- ● For other materials scroll down to "Related Products".
- 8" Camlocks Compatibility
- There are two styles in the 8" size that are not compatible with each other:
- ● PTK Type - PT Coupling and Kuriyama.
- ● NECO Type - Neco, Ever-Tite and Dixon (Andrews).
- PTK and NECO differences:
- ● PTK Type - The OD of the Male Adapter is less than 9" Outer Diameter (OD)
- ● NECO Type - The OD of the Male Adapter is a little over 9" Outer diameter (OD)

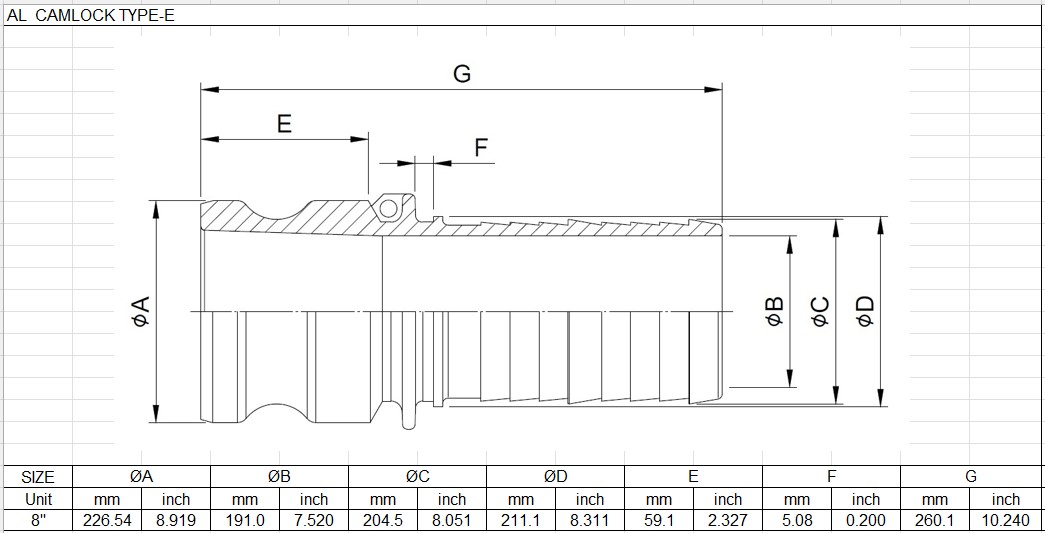

Dimensions:
Specifications:
Size | 8" |
---|---|
Part Number | E800-AL |
Material | Aluminum |
Thread | 8" Hose Barb |
Working Pressure | 50 PSI |
