DP800-AL

 CLICK HERE for All Type DP Sizes

• Product Description:
• ● 8 inch Type DP Aluminum Male Cam and Groove Dust Plug.
• How to use:
• ● To connect, slide the 8" Type DP into a 8" Female Coupler and then close all of the 4 cam handles.
• ● To disconnect, lift up the cam lever arms and uncouple the two fittings.
• To Install:
• ● Slide the 8" Cam & Groove Dust Plug into a 8" Female Coupler and then close all four cam handles.
• Will Connect with:
• ● The adapter portion will couple with a 8" Female Coupler. (PTK Style)
• Used to:
• ● Seal off and close a 8" Female Coupler and to prevent dust and contaminates from entering.
• Style:
• ● PTK Style - Compatible with PT Coupling and Kuriyama
• Material:
• ● Constructed out of Aluminum.

• 8" Camlocks Compatibility
• There are two styles in the 8" size that are not compatible with each other:
• ● PTK Type - PT Coupling and Kuriyama.
• ● NECO Type - Neco, Ever-Tite and Dixon (Andrews).
•
• PTK and NECO differences:
• ● PTK Type - The OD of the Male Adapter is less than 9" Outer Diameter (OD)
• ● NECO Type - The OD of the Male Adapter is a little over 9" Outer diameter (OD)

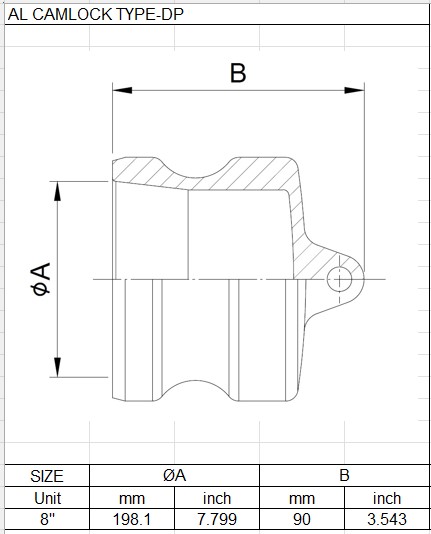

Dimensions:

Specifications:
