Type B - Aluminum Camlock Fitting
In stock
SKU
Type-B-coupler-Aluminum
Size | 1/2" to 8" |
---|---|
Part Number | Type B |
Material | Aluminum |
Handles | Stainless Steel 304 |
Gasket | Buna N |
Thread | Male NPT |
CLICK HERE for All Aluminum Couplers and Adapters
Type B couplers are normally used with Type F adapters, but can be used with Type A and Type E adapters and Type DP (Dust Plug) of identical size.
- Product Description:
- ● The Type B is a Female Coupler x Male NPT Thread.
- How To Use:
- ● To connect, slide the Type B Coupler onto a Male Adapter and then simultaneously close the two cam handles.
- ● To disconnect, lift up the cam handles and uncouple the two fittings.
- To Install:
- ● Thread the Male NPT portion into a Female NPT Thread.
- Will Connect with:
- ● The coupler portion will couple with a Male Adapter.
- ● The thread will connect to a Female NPT Thread. (National Pipe Thread)
- Used for:
- ● Installing a Female Cam & Groove into a Female NPT Thread.
- ● Connecting with a Male Adapter of identical size.
- Sizes:
- ● This Aluminum Coupler is offered in sizes starting from 1/2" all the way up to 8".
- Material of Construction:
- ● Constructed out of Aluminum.
- ● For other materials scroll down to "Related Products".
Dimensions:

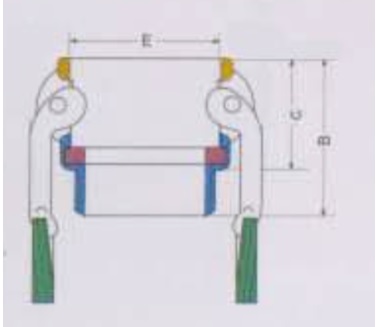

Type-B Coupler Dimensions
Size(mm) | 3/4' | 1' | 1-1/4′ | 1-1/2′ | 2′ | 2-1/2′ | 3′ | 4′ | 5′ | 6′ |
B | 62 | 62 | 64.5 | 67 | 74.5 | 84.5 | 88.7 | 95 | 97 | 103.5 |
C | 40.1 | 40.1 | 45.8 | 46.1 | 50.2 | 55.2 | 58 | 59.2 | 60 | 62 |
E | 32.4 | 37.3 | 46 | 54 | 63.8 | 76.5 | 92.2 | 120.2 | 146 | 176.5 |
Specifications:
Size | 1/2" to 8" |
---|---|
Part Number | Type B |
Material | Aluminum |
Handles | Stainless Steel 304 |
Gasket | Buna N |
Thread | Male NPT |
