3000 PSI Two Piece Ball Valves - Stainless Steel

3000 PSI two piece stainless steel ball valves are designed for extremely high-pressure applications requiring reliable shut-off and long-term performance. These valves are commonly used in systems where standard and mid-pressure valves are not suitable due to elevated operating conditions.

Constructed from 316 stainless steel, these valves provide strength, durability, and corrosion resistance in demanding environments. The two piece body design allows for servicing, while the reduced port configuration helps maintain structural integrity under high pressure.

Featuring female NPT threaded connections, these valves are compatible with standard piping systems and are suitable for use in high-pressure equipment, hydraulic systems, and industrial process applications.

For lower pressure requirements, view our 2000 PSI stainless steel ball valves.

Advantages:

• ● Designed for extreme high-pressure applications up to 3000 PSI
• ● Stronger body construction for maximum durability
• ● Two-piece design allows for servicing and maintenance
• ● Suitable for critical systems requiring high-pressure reliability

Features:

Key specifications and performance features of 3000 PSI stainless steel ball valves include:

• ● Suitable Media: Water, oil, and gas (WOG)
• ● Threads: Female NPT threaded ends for standard piping connections
• ● Seats and Seals: PTFE (Teflon) for chemical resistance and sealing performance
• ● Port: Reduced port design to support high-pressure operation
• ● Handle: Lever-operated for quick shut-off control
• ● Operation: Quarter-turn action for fast and reliable operation
• ● Stem: Blow-out proof design for added safety
• ● Handle Locking Mechanism: Lockable in open or closed position
• ● Mounting Plate: ISO mounting pad for actuator compatibility
• ● Pressure Rating: 3000 PSI (20.7 MPa)
• ● Temperature Range: -4°F to 302°F (-20°C to 150°C)
• ● Body Material: Stainless steel 316 (CF8M)

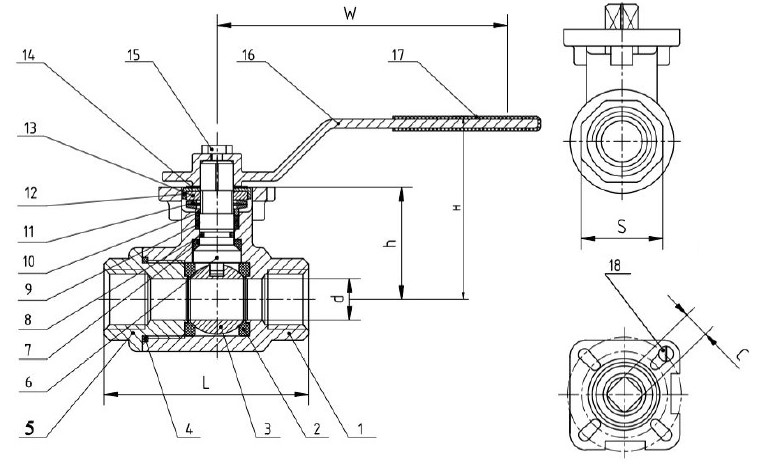

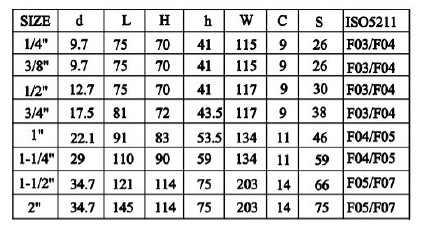

3000 PSI Dimensions:

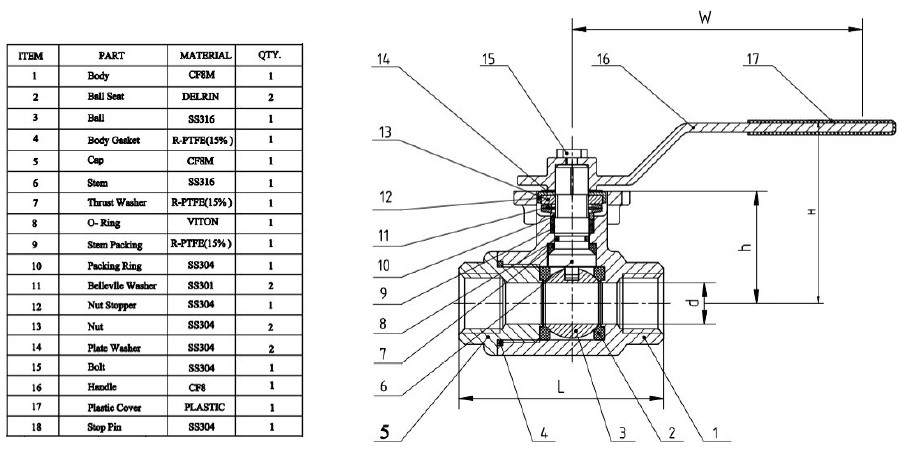

3000 PSI Material List Chart:

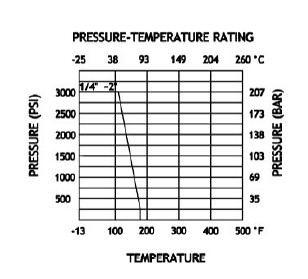

3000 PSI Pressure Temperature Graph:

3000 PSI Ball Valves for High-Pressure Applications

3000 PSI stainless steel ball valves are engineered for applications requiring pressure ratings significantly higher than standard and mid-pressure ball valves. Rated to 3000 PSI, these valves are designed for extreme pressure environments where safety, durability, and system integrity are critical.

Constructed with a two piece valve body, these ball valves offer a robust design while allowing servicing when required. Due to the higher pressure rating, the internal port configuration is reduced compared to standard full port ball valves, enabling the valve body to safely withstand elevated operating pressures.

Manufactured from 316 stainless steel, these valves provide excellent resistance to corrosion and chemical exposure in demanding industrial and process environments. Female NPT threaded connections allow for straightforward installation into standard threaded piping systems, making them suitable for high-pressure equipment, hydraulic circuits, and process piping applications.

Why Choose 3000 PSI Ball Valves

3000 PSI ball valves are typically used in systems where extremely high pressure levels are present and standard or mid-pressure valves are not suitable. Selecting a valve with the correct pressure rating helps ensure safe operation and consistent performance under demanding conditions.

These valves are designed with a stronger body and reduced port configuration to handle higher internal pressure. This design allows them to maintain reliability in applications where pressure loads are significantly higher than typical industrial systems.

• Designed for extreme high-pressure applications
• Stronger construction to handle elevated pressure loads
• Provides reliable shut-off in critical systems
• Suitable for applications where lower-rated valves are not sufficient

When to Choose 3000 PSI Ball Valves

3000 PSI ball valves are a good choice when operating pressures are well above standard and mid-pressure ranges, or when system safety requires a higher-rated valve. They are commonly used in applications where pressure spikes, high loads, or continuous high-pressure operation are expected.

In certain systems, even if operating pressure varies, a higher-rated valve may be selected to provide additional safety margin and reduce the likelihood of failure over time.

For applications with lower pressure requirements, consider high-pressure 2000 PSI ball valves.

• Applications operating at very high pressure levels
• Systems where pressure spikes or surges may occur
• Installations requiring maximum safety margin
• Critical systems where reliability is essential

Common Applications

• High-pressure hydraulic systems
• Industrial process equipment
• Oil and gas systems
• Pressure-intensive fluid transfer systems

Industries

• Oil and gas processing
• Industrial manufacturing
• Heavy equipment and hydraulics
• Energy and utility sectors

3000 PSI vs 2000 PSI Ball Valves

3000 PSI and 2000 PSI ball valves are both designed for high-pressure applications, but they differ in pressure capacity and internal design. While both provide reliable shut-off, 3000 PSI valves are built to handle more extreme pressure conditions.

Due to the higher pressure rating, 3000 PSI valves typically use a reduced port design, which allows the valve body to withstand increased internal pressure.

In contrast, 2000 PSI ball valves often maintain a full port design while still offering higher pressure performance than standard valves.

If your system operates at very high pressure levels or requires maximum safety margin, a 3000 PSI ball valve is typically the better choice. For applications with lower pressure requirements, valves rated for 2000 PSI may provide sufficient performance while maintaining higher flow capacity.

Frequently Asked Questions

What does a 3000 PSI ball valve rating mean?

A 3000 PSI rating indicates the maximum pressure the valve is designed to handle under standard operating conditions. It is intended for systems where pressure levels are significantly higher than standard and mid-pressure applications.

When should I use a 3000 PSI ball valve?

A 3000 PSI ball valve is typically used in systems operating at very high pressures or where maximum safety margin is required. It is also used in applications where pressure spikes or extreme operating conditions may occur.

Are 3000 PSI ball valves full port?

No, most 3000 PSI ball valves use a reduced port design. This allows the valve body to withstand higher pressure by increasing structural strength.

Are 3000 PSI ball valves made from 316 stainless steel?

Yes, these valves are commonly manufactured from 316 stainless steel, making them durable and corrosion-resistant for demanding industrial environments.

Can 3000 PSI ball valves be used in lower-pressure systems?

Yes, they can be used in lower-pressure applications. In some cases, using a higher-rated valve can improve reliability and extend service life.

What is the difference between 3000 PSI and 2000 PSI ball valves?

The main difference is pressure capacity. 3000 PSI valves are designed for more extreme pressure conditions and typically use a reduced port design, while 2000 PSI valves are suited for high-pressure applications with greater flow capacity.

Types of Stainless Steel Ball Valves

Stainless steel ball valves are available in several body styles, each designed for different installation, maintenance, and flow requirements. These configurations are used across both standard and high-pressure applications, depending on system requirements:

• 1 Piece Ball Valves – compact, single-body design typically used for reduced port applications.
• 2 Piece Ball Valves – full port valves offering a balance of performance, cost, and serviceability.
• 3 Piece Ball Valves – designed for easy maintenance without removing the valve from the pipeline.

Specifications:
