Three Piece Full Port Sanitary Ball Valves – 316 Stainless Steel

Three piece full port sanitary ball valves are designed for inline maintenance, cleaning, and reliable shut-off performance in hygienic processing systems. The three-piece body construction allows the center section to be removed while the clamp end connections remain in place, making these valves ideal for applications requiring frequent cleaning and inspection.

Manufactured from 316 stainless steel, these sanitary 3 piece ball valves provide corrosion resistance, durability, and dependable performance in food, beverage, pharmaceutical, and industrial processing systems. Their full port design maintains maximum flow capacity with minimal pressure drop, while sanitary tri-clamp ends allow quick disassembly for cleaning and maintenance.

Advantages:

• ● Valve can be taken apart to reveal internal components
• ● Designed for easy cleaning and inline clean-in-place (CIP) operation without removing the valve from the pipeline
• ● Tri-clamp connections allow quick disassembly for inspection and sanitation

Key Features:

• ● Suitable Media: Food, Beverage, Pharmaceutical, and Hygienic Fluids
• ● End Connections: Sanitary Tri-Clamp
• ● Port: Full port design for maximum flow capacity
• ● Pressure Rating: 1000 WOG
• ● Temperature Range: -4°F to 302°F (-20°C to 150°C)
• ● Stem Design: Blow-out proof
• ● Handle: Lever style
• ● Seats and Seals: PTFE (Teflon)
• ● Body Material: 316 Stainless Steel (CF8M)
• ● Finish: Polished sanitary finish

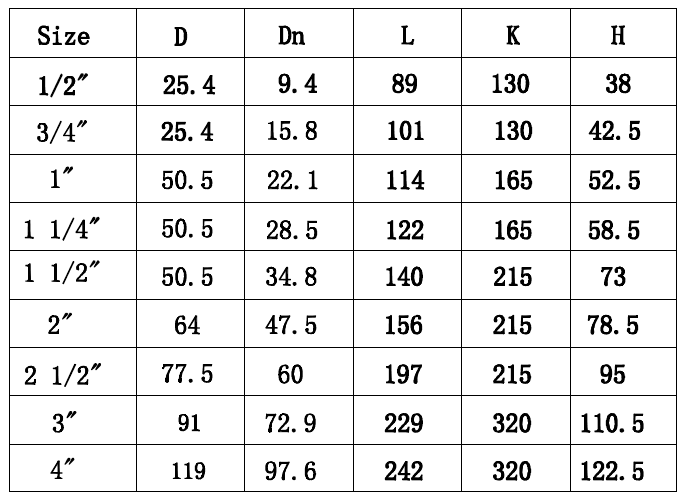

3-Piece Tri-Clamp Ball Valve Dimensions:

What is a Sanitary 3 Piece Ball Valve?

A sanitary 3 piece ball valve is a serviceable shut-off valve designed for hygienic processing systems, featuring tri-clamp end connections and a removable center body section. The three-piece construction allows cleaning, inspection, or seal replacement without removing the valve from the system.

This design is commonly used in food, beverage, dairy, and pharmaceutical applications where cleanliness, easy disassembly, and contamination prevention are critical.

When to Choose Sanitary 3 Piece Ball Valves

Sanitary 3 piece ball valves are best suited for systems requiring frequent cleaning, inspection, and hygienic operation.

• Food and beverage processing systems
• Dairy and brewing applications
• Pharmaceutical and clean-in-place (CIP) systems
• Applications requiring frequent disassembly and sanitation

Sanitary vs Threaded 3 Piece Ball Valves

The primary difference between sanitary and threaded 3 piece ball valves is the connection type and intended application. Sanitary ball valves use tri-clamp connections for quick disassembly and cleaning, making them ideal for hygienic systems.

Threaded ball valves use NPT connections for general industrial applications where ease of installation and removal is preferred but frequent cleaning is not required.

Socket weld 3 piece ball valves are designed for permanent welded installations, providing a high-strength, leak-resistant connection for industrial applications, whereas sanitary ball valves are designed for hygienic systems requiring frequent cleaning and disassembly.

Frequently Asked Questions

What are sanitary 3 piece ball valves used for?

Sanitary 3 piece ball valves are used in hygienic processing systems where frequent cleaning, inspection, and contamination control are required.

What type of connection do sanitary ball valves use?

They use tri-clamp end connections, allowing quick disassembly for cleaning and maintenance.

Are sanitary 3 piece ball valves full port?

Yes, they feature a full port design to maintain maximum flow capacity and minimize pressure drop.

Other Stainless Steel Ball Valve Types

In addition to sanitary 3 piece ball valves, other stainless steel ball valve designs are available for different installation and maintenance requirements.

• Threaded 3 Piece Ball Valves – designed for inline maintenance with removable threaded connections.
• Socket Weld 3 Piece Ball Valves – ideal for permanent welded installations.
• 1 Piece Ball Valves – compact valves for general shut-off applications.
• 2 Piece Ball Valves – durable valves for standard industrial use.

For a broader selection, view our stainless steel ball valves category.

Specifications:
