Victaulic Hose Nipple

 CLICK HERE for all Pipe Fittings

• Description:
• ● Victaulic nipples are hose fittings with a specialized groove on one end and a hose shank with barbs on the other end.
• ● It is has a characteristic specialized groove on one end, formed on the outside of a pipe, that is used with other Victaulic couplings to create a joint.
• Used for:
• ● Used to connect a hose to a Victaulic grooved fitting.
• ● This grooved nipple allows for easy and secure connections, often used in water distribution, fire protection, HVAC and other industrial applications.
• Advantage:
• ● They are quick and easy to install
• ● They have a good ability to absorb vibration and movement.
• To Install:
• ● Place the grooved end against another Victaulic grooved fitting
• ● Place a gasket on one end beforehand and slide it to the center of the newly formed joint.
• ● Then place a Victaulic clamp over the gasket and the two grooved ends of the fittings and tighten the bolts and nuts.
• ● Insert the hose shank into a hose end and fasten with a crimp collar or hose clamp.
• Sizing:
• ● Victaulic Nipple Fittings are sized according to the nominal size of the hose and pipe they will connect to.
• ● For Example: a 2" Grooved Nipple will install in a 2" hose and connect with a 2" Victaulic clamp and fitting.
• Also Called:
• ● Grooved Nipple.
• More Options:
• ● Another option are King Nipples, which are also a type of hose nipple.
• ● Scroll down to "Related Products" for more threaded barbed fittings.
• Material of Construction:
• ● Constructed out of Stainless Steel 316.

More Information:

A Victaulic hose nipple is a specialized hose fitting designed to connect a hose to a Victaulic grooved fitting or other Victaulic component. One end of the nipple has a specialized grooved-end connection that connects with another Victaulic fitting of the same size using a Victaulic coupling. The other end is a barbed hose shank designed to connect with a hose. This grooved hose fitting allows for a quick and secure connection between a hose and a Victaulic fitting system. Often used in applications such as fire protection, fluid transfer, HVAC, and temporary applications that require quick assembly and disassembly. Victaulic hose nipples are durable and easy to install.

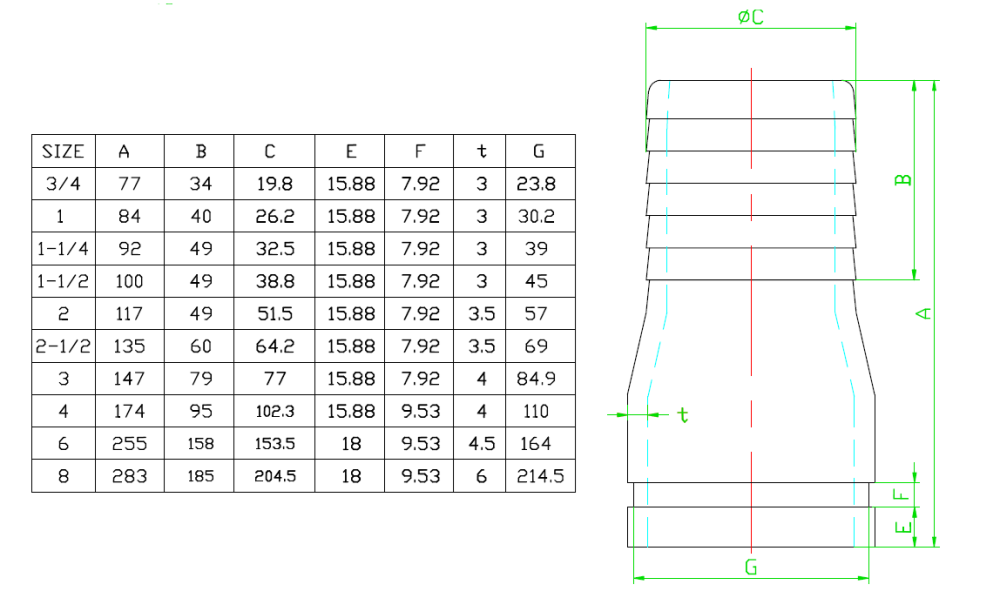

Dimensions:

Specifications:
