Type E - Brass Cam Lock
In stock
SKU
Type-E-Adapter-Brass
| Size | 3/4" to 4" |
|---|---|
| Material | Brass |
| Thread | Hose Barb |
Type E Adapter - Brass Cam and Groove Male Adapter x Hose Shank
Typically, Type E adapters are used with Type C couplers, although, they can be used with a Type B coupler, D coupler or a DC (Dust Cap) of same size.
 |

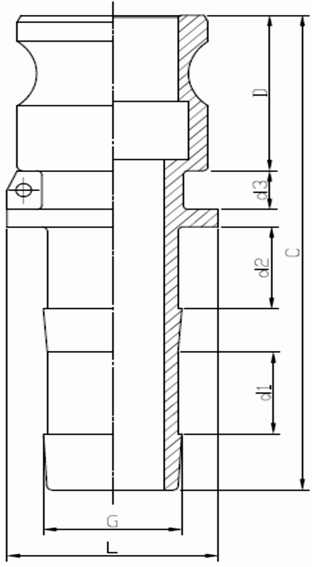

| Size(mm) | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 5 | 6 |
| C | 64.5 | 83.5 | 92.8 | 100.2 | 118 | 135 | 133 | 157.2 | 165 | 185.7 | 207 |
| D | 22.4 | 24 | 28.2 | 35 | 39 | 45 | 43.3 | 45.8 | 47.6 | 54.6 | 55.5 |
| d1 | 11.4 | 19 | 19 | 19.3 | 26 | 31.2 | 30 | 39.6 | 42.5 | 48.4 | 36 |
| d2 | 11.4 | 18.2 | 18 | 17.7 | 24 | 28.6 | 28 | 36 | 38.6 | 44.8 | 36 |
| d3 | 6 | 6 | 6 | 6 | 7 | 8 | 8 | 7 | 7 | 8 | 6 |
| G | 14.8 | 21 | 27.2 | 33.6 | 39.8 | 52.6 | 65.6 | 78.7 | 104 | 129.5 | 155.3 |
| L | 25 | 33.5 | 38 | 48 | 54 | 64 | 77 | 93 | 121.5 | 148.6 | 185 |
| Size | 3/4" to 4" |
|---|---|
| Material | Brass |
| Thread | Hose Barb |
