Type D - Aluminum Cam Locks
In stock
SKU
Type-D-coupler-Aluminum
| Size | 1/2" to 8" |
|---|---|
| Part Number | Type D |
| Material | Aluminum |
| Handles | Stainless Steel 304 |
| Gasket | Buna N |
| Thread | Female NPT |
Type D Coupler - Aluminum Cam and Groove Female Coupler x Female NPT Thread
Type D couplers are normally used with type A adapters but can be used with Type E and F adapters and DP (Dust Plug) of identical size.
Dimensions:

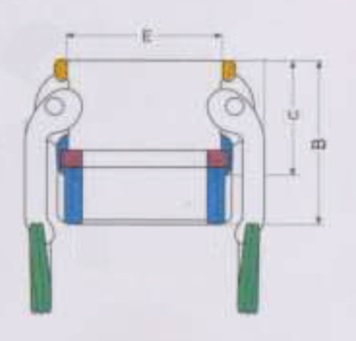

Type-D Coupler Dimensions
 |
| Size(mm) | 3/4' | 1' | 1-1/4′ | 1-1/2′ | 2′ | 2-1/2′ | 3′ | 4′ | 5′ | 6′ |
| B | 54 | 60 | 71 | 71 | 76 | 86 | 92 | 95 | 96 | 100 |
| C | 40.1 | 40.1 | 45.8 | 46.1 | 50.2 | 55.2 | 58 | 59.2 | 60 | 62 |
| E | 32.4 | 37.3 | 46 | 54 | 63.8 | 76.5 | 92.2 | 120.2 | 146 | 176.5 |
Specifications:
| Size | 1/2" to 8" |
|---|---|
| Part Number | Type D |
| Material | Aluminum |
| Handles | Stainless Steel 304 |
| Gasket | Buna N |
| Thread | Female NPT |
