Type A - Brass Cam and Groove Fitting

In stock
SKU
Type-A-Adapter-Brass
More Information
Size3/4" to 4"
Part NumberType A
MaterialBrass
ThreadFemale NPT
  • Brass Type A Cam and Groove Adapter
  • Male Adapter x Female NPT Thread
  •

    Grouped product items
    Product NameSizePrice Qty
    A075-BR 3/4"
    $4.28
    A100-BR 1"
    $5.23
    A125-BR 1-1/4"
    $7.55
    A150-BR 1-1/2"
    $9.97
    A200-BR 2"
    $12.74
    A250-BR 2-1/2"
    $21.80
    A300-BR 3"
    $23.90
    A400-BR 4"
    $41.80
     CLICK HERE for All Brass Couplings



    • ● Typically, Type A adapters are used with Type D couplings,
    • ● Although, they can be used with a Type B or Type C coupling.
    • ● They can be sealed closed with a Type DC (Dust Cap) that is the same size.



    • Description:
    • ● Brass Male Cam and Groove Adapter x Female NPT Thread
    • How To Use:
    • ● To connect, slide the Type A Adapter into a Female Coupling and then close the two cam arms.
    • ● To disconnect, lift up the cam handles and uncouple the two brass fittings.
    • To Install:
    • ● Thread the Female NPT portion onto a Male NPT Thread.
    • Will connect with:
    • ● The adapter portion will couple with a Female Coupler.
    • The threaded end will connect to a Male Thread. (National Pipe Thread)
    • Used for:
    • ● Installing a Male Cam & Groove onto a Male NPT Thread.
    • ● Connecting with a Female Coupler of matching size.
    • Sizes:
    • ● This Brass Adapter is offered in sizes starting from 3/4" up to 4".
    • Material of Construction:
    • Constructed out of Brass.
    • ● For other materials scroll Down to "Related Products".

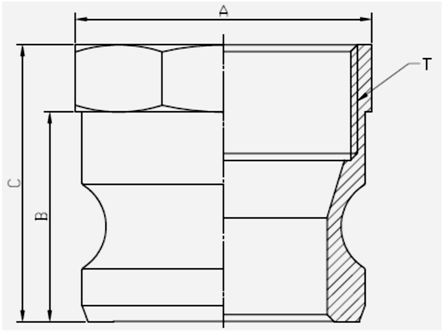

    Dimensions:



    Size(mm)1/23/411-1/41-1/222-1/23456
    A24.132.537.246.35464.28094120.5148.5178.5
    B32.725.330.326.338.344.8564850.35455.5
    C23.734.339.848.350.356.871646975.580.5

    Specifications:

    More Information
    Size3/4" to 4"
    Part NumberType A
    MaterialBrass
    ThreadFemale NPT
