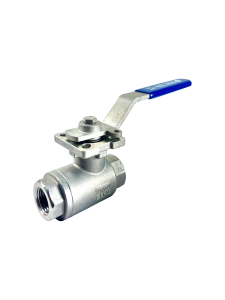

1/2" Two Piece Full Port Threaded Ball Valve – 304 Stainless Steel

• Product Description:
• ● 1/2" NPT Threaded, Full Port, Two Piece Ball Valve (Stainless Steel 304)
• ● Compact two-piece body design
• Bore:
• ● Full Port
• Pressure Rating:
• ● 1000 WOG (Water, Oil & Gas)
• Suitable Media:
• ● Suitable for WOG (Water, Oil & Gas)
• End Connections:
• ● 1/2" Female NPT Thread (National Pipe Thread)
• Thread Type:
• ● NPT (National Pipe Thread)
• Installation:
• ● Threads directly into 1/2" male NPT piping systems
• Valve Handles:
• ● Lever Handles (With Locking Mechanism)
• Stem Type:
• ● Blow-out proof stem
• Seats and Seals:
• ● PTFE (Teflon)
• Material of Construction:
• ● 304 Stainless Steel

1/2" Two Piece Full Port Ball Valve – 304 Stainless Steel

The 1/2" two piece full port ball valve is designed for small-diameter threaded piping systems requiring reliable shut-off performance, unrestricted flow, and long-term durability in industrial and commercial applications. Its compact two-piece body construction provides a balance of strength, serviceability, and cost-efficiency for general-purpose fluid handling systems.

Manufactured from 304 stainless steel, this valve offers corrosion resistance and dependable performance in water, oil, gas, compressed air, and compatible process media applications. The full port design maintains maximum flow capacity with minimal pressure drop, while female NPT threaded ends allow straightforward installation into standard 1/2" piping systems.

Rated to 1000 WOG, this threaded ball valve features PTFE seats and seals, a blow-out proof stem, and a quarter-turn lever handle with locking mechanism for reliable shut-off and secure operation. Common applications include OEM equipment, instrumentation systems, compact industrial equipment assemblies, utility systems, and general fluid control installations.

For additional sizes, view all 304 stainless steel ball valves.

For compact reduced-port shut-off valves, see our 1 piece ball valves.

For inline-serviceable valve designs, view 3 piece ball valves.

For directional flow control applications, explore 3 way ball valves.

1/2" NPT Ball Valve Uses and Applications

A 1/2" NPT ball valve is commonly used in small-diameter threaded piping systems for shut-off and flow control of liquids and gases. These compact threaded ball valves install into standard female or male NPT piping connections and are widely used in industrial equipment, instrumentation systems, compressed air lines, OEM machinery, and general process piping.

This 1/2 inch full port ball valve allows maximum flow through the valve with minimal restriction, making it suitable for water, oil, gas, compressed air, and compatible fluid handling applications where reliable shut-off and corrosion resistance are required.

Why Choose 1/2" Two Piece 304 Ball Valves

The 1/2" two piece 304 stainless steel ball valve is a compact full port valve designed for reliable shut-off, unrestricted flow, and general-purpose industrial fluid handling applications.

• Full port design allows unrestricted flow through the valve
• Two-piece construction supports easier maintenance and servicing
• 304 stainless steel provides corrosion resistance and cost-efficiency
• Compact size suitable for OEM equipment and industrial piping systems

When to Choose a 1/2" Full Port Ball Valve

• Small-diameter threaded piping systems using 1/2" NPT connections
• Applications requiring full port flow in a compact valve body
• OEM equipment, instrumentation, and process fluid systems
• Water, oil, gas, and general-purpose industrial fluid handling

Available Sizes – 304 Stainless Steel Two Piece Ball Valves

Two piece full port 304 stainless steel ball valves are available in sizes from 1/4" through 4" for general-purpose industrial and commercial fluid control applications:

• 1/4"
• 3/8"
• 1/2"
• 3/4"
• 1"
• 1-1/4"
• 1-1/2"
• 2"
• 2-1/2"
• 3"
• 4"

Types of Ball Valves

• 1 Piece Ball Valves – compact, reduced port design for space-restricted applications.
• 2 Piece Ball Valves – full port valves offering a balance of performance, cost-efficiency, and serviceability.
• 3 Piece Ball Valves – designed for inline servicing and maintenance without removing the valve from the pipeline.

Specifications:
