1" Tri-Camp 3-Way Valve (T-Port)

 CLICK HERE for All Sizes

• Uses:
• ● This 1.5" Tri-Clover 3-Way has a 3/4" Ball Valve which is good for low flow rate applications.
• ●  It can combine flow from 2 ports and direct it to a third for this reason it is also called a mixing valve.
• Advantages:

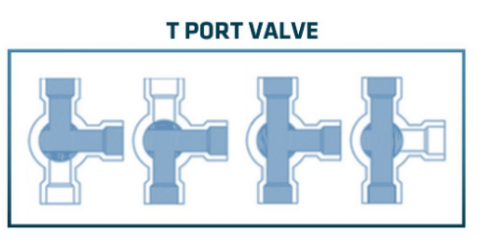

• ● Offers 4 flow patterns: All 3 ports open, any 2 ports open in an L-Formation, or 2 ports open in a straight line. (See diagram below)
• Operation:
• ● Allows flow in any two ports.
• ● Allows flow in all 3 ports. (Can't shut off all flow)
• Materials:
• ● Manufactured from 304 Stainless steel.

Specifications:

• Over All Length (OAL): 4.13"
• T-Port to center line: 2.25"
• Flange OD: 1.984" (1" & 1.5" Tri-Clamp Connection)
• ID: 0.625"
