1.5" Tri-Camp 3-Way Valve (T-Port)

 CLICK HERE for All Sizes

• Description:
• ● 1.5" Tri-Clover 3-Way Ball Valve (T-Port)
• Uses:
• ● It can combine flow from 2 ports; for this reason, it is also called a mixing valve.
• ● It can split flow from one port into 2 outlets.
• Advantages:

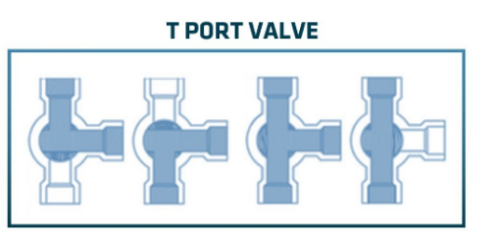

• ● Offers 4 flow patterns: All 3 ports open, any 2 ports open in an L-Formation, or 2 ports open in a straight line. (See diagram below)
• Operation:
• ● Allows flow in any two ports.
• ● Allows flow in all 3 ports.
• Materials:
• ● Manufactured from 304 Stainless steel.

Specifications:

• Over All Length (OAL): 5"
• Flange OD: 1.984" (1" & 1.5" Tri-Clamp Connection)
• ID: 1.375"
