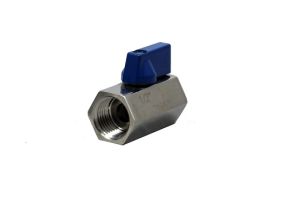

1/2" Mini Ball Valve – Male x Female NPT, 316 Stainless Steel
| Size | 1/2" |
|---|---|
| Part Number | BV050-SS-M-M/F |
| Material | Stainless Steel |
| Handles | Hardened Plastic |
| Temperature Rating | -4°F to 302°F |
| Seal | Viton |
| Thread | 1/2" Male NPT x 1/2" Female NPT |
| Working Pressure | 1000 PSI |
1/2" Mini Ball Valve – Male x Female NPT, 316 Stainless Steel
- Product description:
- ● 1/2" male x female NPT mini ball valve
- ● Compact body design for space-restricted installations
- ● Standard (reduced) port for controlled flow
- ● 316 stainless steel body for corrosion resistance
- ● Quarter-turn lever (flag) handle for simple shut-off control
- ● PTFE (Teflon) seats and seals
- ● Rated to 1000 WOG for water, oil, and gas
- Uses:
- ● Instrumentation lines
- ● Compact piping systems
- ● OEM equipment and assemblies
- ● Compressed air and utility lines
- ● General industrial shut-off applications
- Bore:
- ● Standard Port (Reduced Bore) — allows compact body size and controlled flow
- Pressure Rating:
- ● 1000 WOG (Water, Oil, Gas)
- Suitable Media:
- ● Water, oil, and gas (WOG)
- End Connections:
- ● 1/2" Male NPT x 1/2" Female NPT
- Thread Type:
- ● NPT (National Pipe Thread)
- Installation:
- ● Threads directly into 1/2" female NPT piping or fittings and accepts male NPT connections
- Valve Handle:
- ● Lever (flag) handle
- Stem Type:
- ● Blow-out proof stem
- Seats and Seals:
- ● PTFE (Teflon)
- Material of Construction:
- ● 316 Stainless Steel
1/2" Mini Ball Valve – Compact Male x Female Design
The 1/2" male x female mini ball valve is designed for compact threaded systems where space is limited and reliable shut-off is required. This compact ball valve (also referred to as a small ball valve or miniature ball valve) is ideal for instrumentation lines, utility piping, OEM equipment, and installations where quick connection and directional flow control are needed.
Its compact single-body construction (single piece design) minimizes potential leak paths while maintaining durability and performance in demanding applications. Manufactured from 316 stainless steel, this mini ball valve provides corrosion resistance and long-term reliability in industrial and process environments.
The standard (reduced) port design supports controlled flow while allowing a smaller valve body than full-port alternatives. Compared to full port valves, the reduced bore helps maintain a compact footprint while still delivering dependable shut-off performance.
Rated to 1000 WOG, this threaded mini ball valve features a male NPT inlet and female NPT outlet for flexible installation into standard 1/2" piping systems. PTFE seats provide reliable sealing performance, while the quarter-turn lever (flag) handle allows quick and simple shut-off operation.
Because of its compact design, this valve is commonly used in small diameter piping systems, compact valve installations, compressed air lines, and instrumentation setups where space efficiency and dependable shut-off are required.
For alternative compact connections, view our mini ball valves.
For larger compact shut-off valves, see our 1 piece ball valves.
For applications requiring higher flow capacity, consider full port ball valves.
Why Choose 1/2" Mini Ball Valves
The 1/2" mini ball valve is ideal for compact systems where installation space is limited and a small shut-off valve is required. Its compact body design helps reduce potential leak paths while maintaining dependable performance in threaded piping systems.
- Compact size for tight installations
- Durable compact construction
- Reduced leak paths compared to multi-piece designs
- Suitable for instrumentation and small utility lines
When to Choose a 1/2" Mini Ball Valve
- Small diameter piping systems (1/2")
- Applications where space is restricted
- Instrumentation and control lines
- General-purpose shut-off in water, oil, gas, or air lines
Frequently Asked Questions – 1/2" Mini Ball Valves
What is a 1/2" mini ball valve used for?
A 1/2" mini ball valve is used in small diameter piping systems, instrumentation lines, and compact equipment where space is limited and reliable shut-off is required.
What is the difference between male x female and female x female mini ball valves?
A male x female mini ball valve has one male NPT thread and one female NPT thread, allowing direct connection into existing fittings or piping without additional adapters. A female x female version connects between two male-threaded components.
Is a mini ball valve full port?
No. Mini ball valves are typically standard (reduced) port, which helps keep the valve body compact.
What is the pressure rating of this mini ball valve?
This valve is rated to 1000 WOG for water, oil, and gas applications.
Available Sizes – Mini Ball Valves (Male x Female)
Mini ball valves with male x female NPT threaded connections are available in the following sizes for compact shut-off applications:
For the full range of configurations, view our mini ball valves.
Types of Stainless Steel Ball Valves
- Mini Ball Valves – compact shut-off valves for small diameter and space-restricted systems.
- 1 Piece Ball Valves – compact, reduced port valves for general industrial use.
- 2 Piece Ball Valves – full port valves offering higher flow capacity.
- 3 Piece Ball Valves – designed for inline servicing and maintenance.
Specifications:
| Size | 1/2" |
|---|---|
| Part Number | BV050-SS-M-M/F |
| Material | Stainless Steel |
| Handles | Hardened Plastic |
| Temperature Rating | -4°F to 302°F |
| Seal | Viton |
| Thread | 1/2" Male NPT x 1/2" Female NPT |
| Working Pressure | 1000 PSI |
